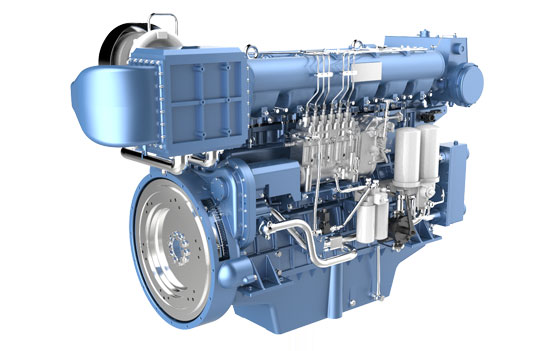

Weichai 170 series marine diesel engine (258-735kW)
weichai
Weichai 170 series marine diesel engine (258-735kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 6 / 8 |
Bore & stroke | 170×200 (mm) | Displacement | 27.24 L / 36.32 L |
Oil consumption rate | ≤0.5 g/kW.h | Noise | ≤105 dB(A) |
Minimum fuel consumption rate | 197 g/kW.h | Idle speed | 450-650 r/min |
Torque reserve | 20-34% | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions L×W×H) / net weight | L6 2463×1200×1650 (mm) / 3100kg L8 2650×1040×1818 (mm) / 3800kg | ||
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
X6170 | X6170ZC350-1 | TA | 258/350 | 1000 | Mechanical pump | IMO Ⅱ | P1 |
X6170ZC408-1 | TA | 300/408 | 1000 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC450-1 | TA | 330/450 | 1000 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC480-2 | TA | 353/480 | 1200 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC540-2 | TA | 397/540 | 1200 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC620-2 | TA | 456/620 | 1200 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC650-2 | TA | 478/650 | 1200 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC580-3 | TA | 426/580 | 1350 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC680-3 | TA | 500/680 | 1350 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC620-5 | TA | 456/620 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC550-5 | TA | 404/550 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC756-5 | TA | 556/756 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
X6170ZC818-5 | TA | 601/818 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
8170 | 8170ZC600-1 | TA | 441/600 | 1000 | Mechanical pump | IMO Ⅱ | P1 |
8170ZC720-2 | TA | 530/720 | 1200 | Mechanical pump | IMO Ⅱ | P1 | |
8170ZC818-3 | TA | 601/818 | 1350 | Mechanical pump | IMO Ⅱ | P1 | |
8170ZC900-3 | TA | 661/900 | 1350 | Mechanical pump | IMO Ⅱ | P1 | |
8170ZC900-5 | TA | 661/900 | 15000 | Mechanical pump | IMO Ⅱ | P1 | |
8170ZC1000-5 | TA | 735/1000 | 1500 | Mechanical pump | IMO Ⅱ | P1 |
