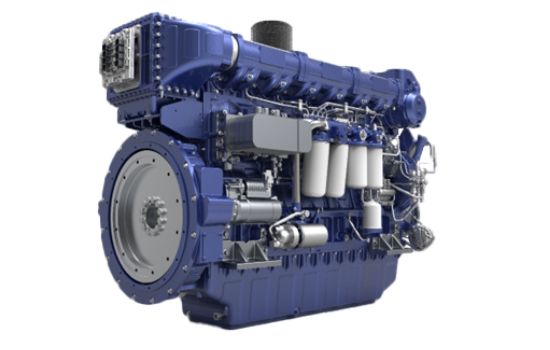

Weichai 6WH17 series marine diesel engine (661-735kW)
weichai
Weichai 6WH17 series marine diesel engine (661-735kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 6 |
Bore & stroke | 170×222 (mm) | Displacement | 30.22 L |
Oil consumption rate | ≤0.3 g/kW.h | Noise | ≤111 dB(A) |
Minimum fuel consumption rate | 190 g/kW.h | Idle speed | 500 r/min |
Starting system | Electrical | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) | 2355×1220×1615 (mm) | Net weight | 3500 kg |
Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
6WH17 | 6WH17C900-3 | TA | 661/900 | 1350 | HPCR | IMO Ⅱ | P1 |
6WH17C900-5 | TA | 661/900 | 1500 | HPCR | IMO Ⅱ | P1 | |
6WH17C1000-5 | TA | 735/1000 | 1500 | HPCR | IMO Ⅱ | P1 |
