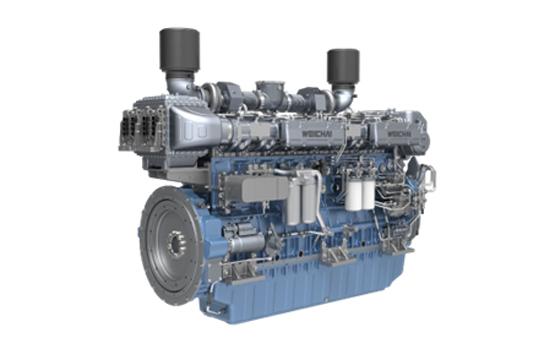

Weichai 8WH17 series marine diesel engine (662-1000kW)
weichai
Weichai 8WH17 series marine diesel engine (662-1000kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 8 |
Bore & stroke | 170×222 (mm) | Displacement | 40.31 L |
Oil consumption rate | ≤0.3 g/kW.h | Noise | ≤111 dB(A) |
Minimum fuel consumption rate | 190 g/kW.h | Idle speed | 500 r/min |
Starting system | Electrical | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) | 2917×1147×1805 (mm) | Net weight | 4600 kg |
Remark: Product parameters and model portfolio are for reference only. Please contact relevant personnel for official information on delivery time and fishing boat model portfolio.
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
8WH17* | 8WH17C900-1 | TA | 662/900 | 1000 | HPCR | IMO Ⅱ | P1 |
8WH17C952-1 | TA | 700/952 | 1000 | HPCR | IMO Ⅱ | P1 | |
8WH17C1000-2 | TA | 735/1000 | 1200 | HPCR | IMO Ⅱ | P1 | |
8WH17C1156-2 | TA | 850/1156 | 1200 | HPCR | IMO Ⅱ | P1 | |
8WH17C1200-3 | TA | 882/1200 | 1350 | HPCR | IMO Ⅱ | P1 | |
8WH17C1251-5 | TA | 920/1251 | 1500 | HPCR | IMO Ⅱ | P1 | |
8WH17C1360-5 | TA | 1000/1360 | 1500 | HPCR | IMO Ⅱ | P1 |
