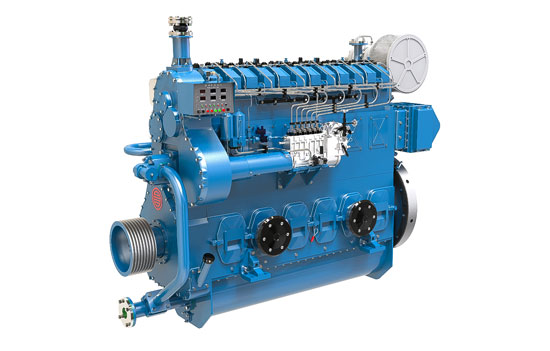

Weichai CW200 series marine diesel engine (594-1760kW)
weichai
Weichai CW200 series marine diesel engine (594-1760kW)
Parameters Table
Type | Four-stroke, water cooled, in-line,/V type turbocharged and intercooled | Number of cylinders | 6/8/12/16 |
Bore & stroke | 200×270 (mm) | Displacement | 50.892 L /67.856 L /101.784 L /135.68 L |
Oil consumption rate | ≤0.8 g/kW.h | Noise | ≤110 dB(A) |
Minimum fuel consumption rate | 195 g/kW.h | Idle speed | 40% rated speed |
Rotation (facing the flywheel) | Clockwise | ||
Dimensions (L×W×H) / net weight | L6:2820×1465×2488(mm) / 6500kg L8:3540×1480×2531(mm) / 7800kg V12:3900×1700×2520(mm) / 10900kg V16:4633×1700×2745(mm) / 13680kg | ||
Model Portfolio Table
Series | Model | Rated power kW/Ps | Rated speed r/min | Fuel and configuration | Emission | Power rating | |
Diesel oil | 180 cst HFO | ||||||
CW200 | CW6200ZC-37 | 594/808 | 1000 | Integral pump | None | IMOⅡ | P1 |
XCW6200ZC-51 | 600/816 | 750 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
CW6200ZC | 600/816 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW6200ZC-4 | 648/882 | 900 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW6200ZC | 698/950 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW6200ZC-1 | 720/980 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW6200ZC-10 | 810/1102 | 1000 | Integral / monomer pump | None | IMOⅡ | P1 | |
XCW6200ZC-9 | 840/1143 | 1000 | Integral pump | None | IMOⅡ | P1 | |
WHM6200C1225-1 | 900/1225 | 1000 | Integral / monomer pump | None | IMOⅡ | P1 | |
XCW8200ZC-12 | 890/1210 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW8200ZC | 928/1263 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW8200ZC-1 | 960/1306 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW8200ZC-13 | 992/1350 | 1000 | Integral / monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW8200ZC-10 | 1030/1400 | 1000 | Integral / monomer pump | None | IMOⅡ | P1 | |
XCW8200ZC-2 | 1104/1500 | 1000 | Monomer pump | None | IMOⅡ | P1 | |
CW12V200ZC-2 | 1080/1468 | 900 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW12V200ZC-4 | 1296/1763 | 900 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
CW12V200ZC | 1200/1633 | 1000 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW12V200ZC | 1392/1894 | 1000 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
XCW12V200ZC-1 | 1440/1960 | 1000 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
CW16V200ZC-6 | 1600/2177 | 1000 | Monomer pump | Monomer pump | IMOⅡ | P1 | |
CW16V200ZC | 1760/2395 | 1000 | Monomer pump | None | IMOⅡ | P1 | |
