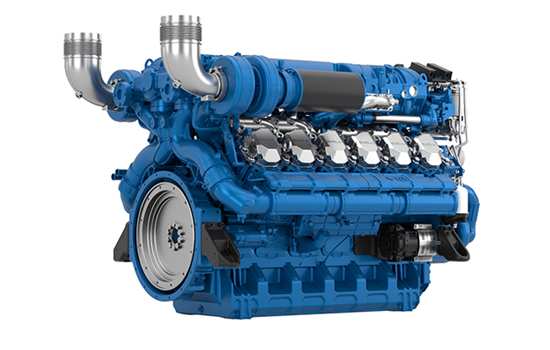

Weichai M26 series marine diesel engine (300-1215kW)
weichai
Weichai M26 series marine diesel engine (300-1215kW)
Parameters Table
Type | Four-stroke, water cooled, in-line/V type turbocharged and aftercooled | Number of cylinders | 6/12 |
Bore & stroke | 150×150 (mm) | Displacement | 15.9 L / 31.8 L |
Oil consumption rate | ≤0.5 g/kW.h | Noise | ≤100 dB(A) |
Minimum fuel consumption rate | 200 g/kW.h | Idle speed | 650±30 r/min |
Torque reserve | 20-30% | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) / net weight | L6: 2103×1172×1196 (mm) / 1985kg V12: 2333×1350×1494 (mm) / 3300kg | ||
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
6M26.3 | 6M26.3 | TA | 441/600 | 1800 | HPCR | IMO Ⅱ / IMO III / EPA III | P1 |
6M26.3 | TA | 485/660 | 1800 | HPCR | IMO Ⅱ | P2 | |
6M26.3 | TA | 515/700 | 2000 | HPCR | IMO Ⅱ / IMO III / EPA III | P2 | |
6M26.3 | TA | 551/750 | 2100 | HPCR | IMO Ⅱ / IMO III / EPA III | P2 | |
6M26.3 | TA | 599/815 | 2100 | HPCR | IMO Ⅱ / IMO III / EPA III | P3 | |
12M26.33 | 12M26.3 | TA | 883/1200 | 1800 | HPCR | IMO Ⅱ / IMO III / EPA IV | P1 |
12M26.3 | TA | 970/1320 | 1800 | HPCR | IMO Ⅱ | P2 | |
12M26.3 | TA | 1030/1400 | 2100 | HPCR | IMO Ⅱ / IMO III / EPA III | P2 | |
12M26.3 | TA | 1104/1500 | 2200 | HPCR | IMO Ⅱ / IMO III / EPA IV | P2 | |
12M26.3 | TA | 1214/1650 | 2300 | HPCR | IMO Ⅱ / IMO III / EPA IV | P3 |
