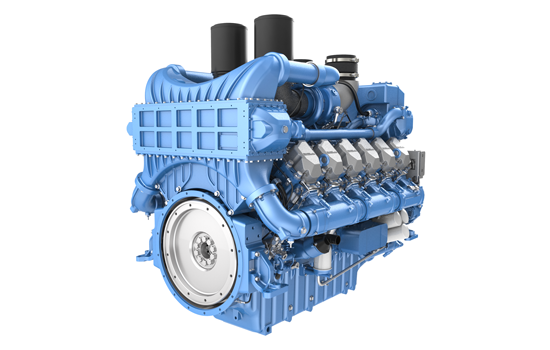

Weichai M33 series marine diesel engine (404-1545kW)
weichai
Weichai M33 series marine diesel engine (404-1545kW)
Parameters Table
Type | Four-stroke, water cooled, in-line/V type turbocharged and aftercooled | Number of cylinders | 6/12 |
Bore & stroke | 150×185 (mm) | Displacement | 19.6 L / 39.2 L |
Oil consumption rate | ≤0.8 g/kW.h | Noise | ≤100 dB(A) |
Minimum fuel consumption rate | 190 g/kW.h | Idle speed | 650±30 r/min |
Torque reserve | 20-30% | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) / net weight | L6:1870×1000×1400(mm) / 2390kg V12:2210×1418×1554(mm) / 3900kg | ||
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
6M33 | 6M33C550-15 | TA | 404/550 | 1500 | Mechanical pump | IMO Ⅱ | P1 |
6M33C600-18 | TA | 441/600 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
6M33C650-18 | TA | 478/650 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
6M33C700-18 | TA | 515/700 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
6M33C750-18 | TA | 551/750 | 1800 | Mechanical pump | IMO Ⅱ | P2 | |
6M33C750-18E211 | TA | 552/750 | 1800 | HPCR | IMO Ⅱ | P1 | |
6M33C830-18E211 | TA | 610/830 | 1800 | HPCR | IMO Ⅱ | P2 | |
6M33C912-19E211 | TA | 670/912 | 1900 | HPCR | IMO Ⅱ | P3 | |
6M33C1020-20E211 | TA | 750/1020 | 2000 | HPCR | IMO Ⅱ | P4 | |
12M33 | 12M33C1000-15 | TA | 735/1000 | 1500 | Mechanical pump | IMO Ⅱ | P1 |
12M33C1200-18 | TA | 882/1200 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
12M33C1300-18 | TA | 956/1300 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
12M33C1400-18 | TA | 1029/1400 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
12M33C1500-18 | TA | 1103/1500 | 1800 | Mechanical pump | IMO Ⅱ | P2 | |
12M33C1400-18E211 | TA | 1030/1400 | 1800 | HPCR | IMO Ⅱ | P1 | |
12M33C1500-18E211 | TA | 1104/1500 | 1800 | HPCR | IMO Ⅱ | P2 | |
12M33C1650-18E211 | TA | 1214/1650 | 1800 | HPCR | IMO Ⅱ | P3 | |
16M33 | 16M33C1750-16E211 | TA | 1287/1750 | 1600 | HPCR | IMO Ⅱ | P1 |
16M33C1850-16E211 | TA | 1361/1850 | 1600 | HPCR | IMO Ⅱ | P2 | |
16M33C1950-18E211 | TA | 1434/1950 | 1800 | HPCR | IMO Ⅱ | P1 | |
16M33C2100-18E211 | TA | 1545/2100 | 1800 | HPCR | IMO Ⅱ | P2 |
