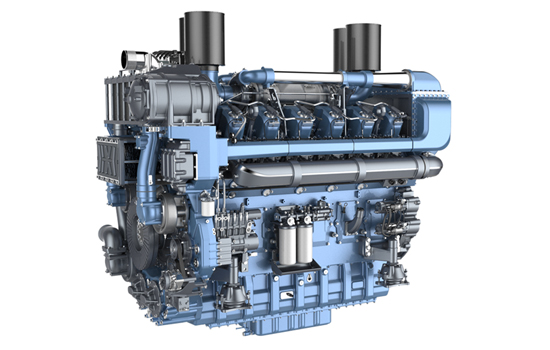

Weichai M55 series marine diesel engine (1150-1620kW)
weichai
Weichai M55 series marine diesel engine (1150-1620kW)
Parameters Table
Type | Four-stroke, water cooled, V type, turbocharged and aftercooled | Number of cylinders | 12/16 |
Bore & stroke | 180×215 (mm) | Displacement | 65.65 L / 87.5 L |
Oil consumption rate | ≤0.2 g/kW.h | Noise | ≤111 dB(A) |
Minimum fuel consumption rate | 192 g/kW.h | Idle speed | 650 r/min |
Starting system | Electrical | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) | 12M55: 2927×1565×2637 (mm) 16M55: 3518×1555×2484 (mm) | Net weight | 12M55: 10000 kg 16M55: 11500 kg |
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
12M55 | 12M552450-16E210 | TA | 1800/2450 | 1600 | HPCR | IMO Ⅱ | P1 |
12M55C2700-16E210 | TA | 1985/2700 | 1600 | HPCR | IMO Ⅱ | P1 | |
12M55C2250-18E211 | TA | 1654/2250 | 1800 | HPCR | IMO Ⅱ | P1 | |
12M55C2450-18E211 | TA | 1800/2450 | 1800 | HPCR | IMO Ⅱ | P1 | |
12M55C2600-18E211 | TA | 1912/2600 | 1800 | HPCR | IMO Ⅱ | P1 | |
12M55C2738-18E211 | TA | 2013/2738 | 1800 | HPCR | IMO Ⅱ | P1 | |
12M55C3000-18E211 | TA | 2205/3000 | 1800 | HPCR | IMO Ⅱ | P2 | |
12M55C3450-18E211 | TA | 2536/3450 | 1800 | HPCR | IMOⅡ | P3 | |
16M55 | 16M55C2800-15E210 | TA | 2060/2800 | 1500 | HPCR | IMOⅡ | P1 |
16M55C3000-15E210 | TA | 2205/3000 | 1500 | HPCR | IMOⅡ | P1 | |
16M55C3400-15E210 | TA | 2500/3400 | 1500 | HPCR | IMOⅡ | P1 | |
16M55C3128-18E211 | TA | 2300/3128 | 1800 | HPCR | IMOⅡ | P1 | |
16M55C3400-18E211 | TA | 2500/3400 | 1800 | HPCR | IMOⅡ | P1 | |
16M55C3810-18E211 | TA | 2800/3810 | 1800 | HPCR | IMOⅡ | P1 | |
16M55C4000-18E211 | TA | 2941/4000 | 1800 | HPCR | IMOⅡ | P2 |
