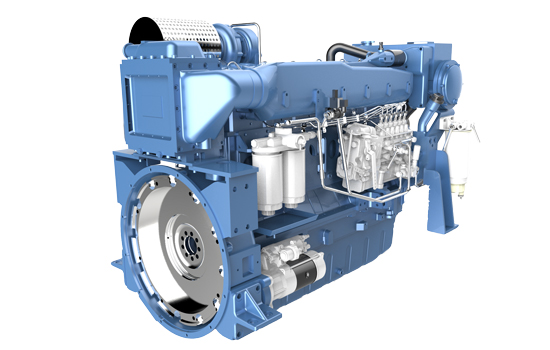

Weichai WD10 series marine diesel engine (140-240kW)
weichai
Weichai WD10 series marine diesel engine (140-240kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged/turbocharged and aftercooled | Number of cylinders | 6 |
Bore & stroke | 126×130 (mm) | Displacement | 9.726 L |
Oil consumption rate | ≤0.6 g/kW.h | Noise | ≤99 dB(A) |
Minimum fuel consumption rate | 195 g/kW.h | Idle speed | 600±50 r/min |
Torque reserve | 20-35% | Rotation (facing the flywheel) | Counter-clockwise |
Dimensions (L×W×H) / net weight | T 1499×814×1164(mm) / 1018kg TA, dry-type exhaust pipe 1447×960×1211(mm) / 1056kg TA, water jacket exhaust pipe 1452×814×1418(mm) / 1056kg | ||
Model Portfolio Table
Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
WD10 | WD10C190-15 | TA | 140/190 | 1500 | Mechanical pump | IMO Ⅱ | P1 |
WD10C200-21 | T | 147/200 | 2100 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C218-15 | A | 160/218 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C240-15 | TA | 176/240 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C240-18 | TA | 176/240 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C278-15 | TA | 205/278 | 1500 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C278-18 | TA | 205/278 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C278-21 | TA | 205/278 | 2100 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C300-21 | TA | 220/300 | 2100 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C312-18 | TA | 230/312 | 1800 | Mechanical pump | IMO Ⅱ | P1 | |
WD10C326-21 | TA | 240/326 | 2100 | Mechanical pump | IMO Ⅱ | P1 |
