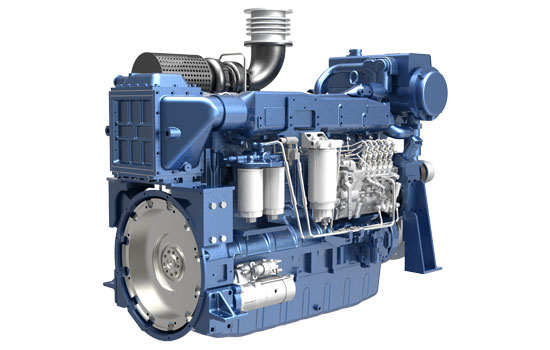

Weichai WD12 series marine diesel engine (220-294kW)

weichai

Parameters Table

Type	Four-stroke, water cooled, in-line, turbocharged and aftercooled	Number of cylinders	6
Bore & stroke	126×155 (mm)	Displacement	11.596 L
Oil consumption rate	≤0.6 g/kW.h	Noise	≤100 dB(A)
Minimum fuel consumption rate	212 g/kW.h	Idle speed	650±30 r/min
Torque reserve	20-35%	Rotation (facing the flywheel)	Counter-clockwise
Dimensions (L×W×H) / net weight	1534×807×1512 (mm) / 1100kg
