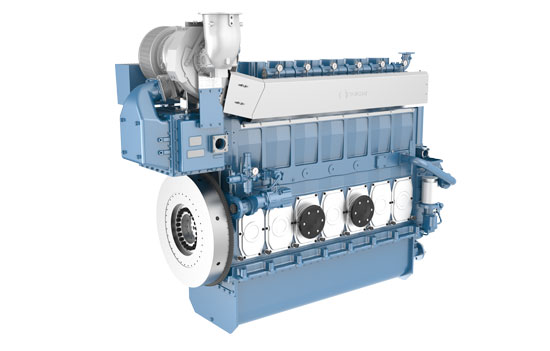

Weichai WH20 series marine diesel engine (900-1765kW)
weichai
Weichai WH20 series marine diesel engine (900-1765kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged and intercooled | Number of cylinders | 6/8 |
Bore & stroke | 200×300 (mm) | Displacement | 56.55 L /75.4 L |
Oil consumption rate | ≤0.5 g/kW.h | Noise | ≤110 dB(A) |
Minimum fuel consumption rate | 185 g/kW.h | Idle speed | 400r/min |
Rotation (facing the flywheel) | Clockwise | Dimensions (L×W×H) / net weight | L6:3532×1365×2642 (mm) / 9800kg L8:4132×1365×2642 (mm) / 12500kg |
Model Portfolio Table
Series | Model | Rated power kW/Ps | Rated speed r/min | Fuel and configuration (Diesel oil) | Emission | Power rating |
WH20 | 6WH20LC1230-1 | 905/1230 | 1000 | Monomer pump | IMO Ⅱ | P1 |
6WH20LC1360-1 | 1000/1360 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
6WH20LC1520-1 | 1118/1520 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
6WH20LC1632-1 | 1200/1632 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
6WH20LC1795-1 | 1320/1795 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
6WH20LC1500-9* | 1103/1500 | 900 | Monomer pump | IMO Ⅱ | P1 | |
6WH20LC1225-7.5* | 900/1226 | 750 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC2400-1 | 1765/2400 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC2176-1 | 1600/2176 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC2000-1 | 1470/2000 | 1000 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC2040-9* | 1500/2040 | 900 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC1850-9* | 1360/1850 | 900 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC1650-7.5* | 1213/1650 | 750 | Monomer pump | IMO Ⅱ | P1 | |
8WH20LC1500-7.5* | 1103/1500 | 750 | Monomer pump | IMO Ⅱ | P1 |
