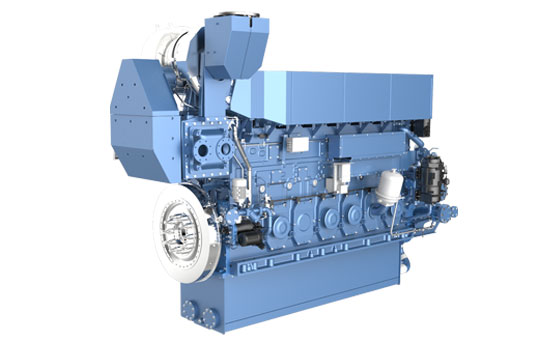

Weichai WH28 series marine diesel engine (2050-3600kW)
weichai
Weichai WH28 series marine diesel engine (2050-3600kW)
Parameters Table
Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 6/8 |
Bore & stroke | 280×410(mm) | Displacement | 151.5 L / 202 L |
Oil consumption rate | ≤0.5g/kW.h | Noise | ≤114 dB(A) |
Minimum fuel consumption rate | 181g/kW.h | Idle speed | 320 r/min |
Rotation (facing the flywheel) | Clockwise/counterclockwise | Length×Width×Height/net weight | L6:5068×1967×3510(mm)/24000kg L8:5949×1967×3510(mm)/29000kg |
Model Portfolio Table
Series | Model | Rated power kW/Ps | Rated speed r/min | Fuel system | Emission | Power rating |
WH28 | 6WH28C2790-6.5 | 2050/2790 | 650 | Mechanical pump | IMO Ⅱ | P1 |
6WH28C3040-7.5 | 2240/3040 | 750 | Mechanical pump | IMO Ⅱ | P1 | |
6WH28C3264-8 | 2400/3264 | 800 | Mechanical pump | IMO Ⅱ | P1 | |
6WH28C3672-8 | 2700/3672 | 800 | Mechanical pump | IMO Ⅱ | P1 | |
8WH28C4080-7.5 | 3000/4080 | 750 | Mechanical pump | IMO Ⅱ | P1 | |
8WH28C4352-8 | 3200/4352 | 800 | Mechanical pump | IMO Ⅱ | P1 | |
8WH28C4896-8* | 3600/4896 | 800 | Mechanical pump | IMO Ⅱ | P1 |
