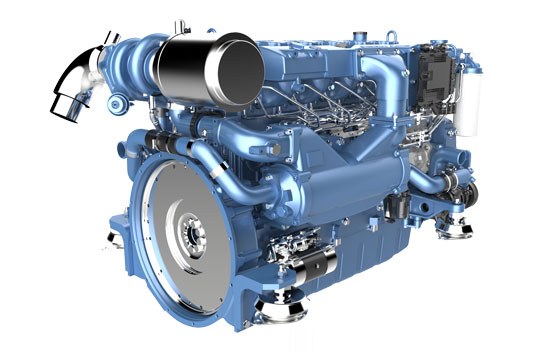

Weichai WP10 series marine diesel engine (230-290kW)

weichai

Parameters Table

Type	Four-stroke, water cooled, in-line, turbocharged and aftercooled	Number of cylinders	6
Bore & stroke	126×130 (mm)	Displacement	9.726 L
Oil consumption rate	≤0.5 g/kW.h	Noise	≤97 dB(A)
Minimum fuel consumption rate	191 g/kW.h	Idle speed	600±50 r/min
Torque reserve	20-35%	Net weight	1070 kg
Rotation (facing the flywheel)	Counter-clockwise	Emission	IMO II
Dimensions (L×W×H)	1482×981×1016 (mm)
