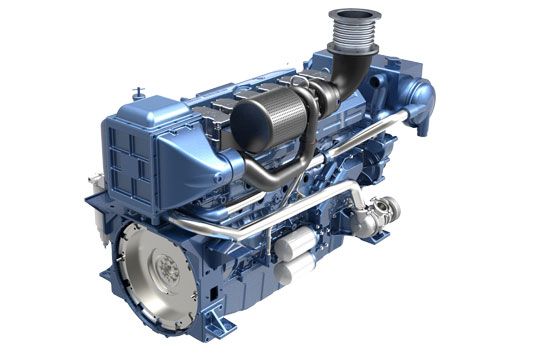

Weichai WP12 series marine diesel engine (295-405kW)

weichai

Parameters Table

Type	Four-stroke, water cooled, in-line, turbocharged and aftercooled	Number of cylinders	6
Bore & stroke	126×155 (mm)	Displacement	11.596 L
Oil consumption rate	≤0.5 g/kW.h	Noise	≤100 dB(A)
Minimum fuel consumption rate	191 g/kW.h	Idle speed	650±50 r/min
Torque reserve	25-35%	Rotation direction of crankshaft (facing the flywheel end)	Counter-clockwise
Dimensions (L×W×H) / net weight	Mechanical pump 1695×858×1385 (mm) / 1200kg HPCR 1683×928×1264 (mm) / 1200kg

Model Portfolio Table
