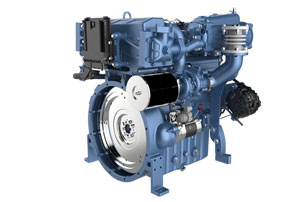

Weichai WP2.3N series marine diesel engine (40-95kW)
weichai
Weichai WP2.3N series marine diesel engine (40-95kW)
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 4 |
| Bore & stroke | 89×92 (mm) | Displacement | 2.3L |
| Oil consumption rate | ≤0.1 g/kW·h | Noise | ≤96 dB(A) |
| Minimum fuel consumption rate | 190 g/kW·h | Idle speed | 750 r/min |
| Rotation (facing the flywheel) | Counter-clockwise | Net weight | 310 kg |
Dimensions (L×W×H) | 730×688×822 (mm) | ||
Model Portfolio Table
| Series | Model | Aspiration | Rated power kW/Ps | Speed r/min | Fuel system | Emission | Power rating |
| WP2.3N | WP2.3NC54-18E220 | TA | 40/54 | 1800 | HPCR | / | P1 |
| WP2.3NC68-18E220 | TA | 50/68 | 1800 | HPCR | / | P1 | |
| WP2.3NC82-18E220 | TA | 60/82 | 1800 | HPCR | / | P1 | |
| WP2.3NC102-21E220 | TA | 75/102 | 2100 | HPCR | / | P1 | |
| WP2.3NC110-25E220 | TA | 81/110 | 2500 | HPCR | / | P1 | |
| WP2.3NC130-32E220 | TA | 95/130 | 3200 | HPCR | / | P3 |
