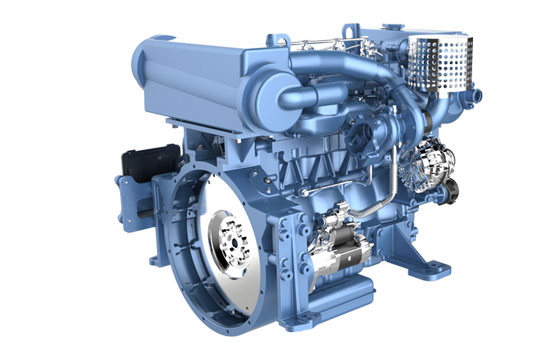

Weichai WP3N series marine diesel engine (85-118kW)
weichai
Weichai WP3N series marine diesel engine (85-118kW)
Parameters Table
| Type | Four-stroke, water cooled, in-line, turbocharged and aftercooled | Number of cylinders | 4 |
| Bore & stroke | 94×107 (mm) | Displacement | 2.97L |
| Oil consumption rate | ≤0.1 g/kW·h | Noise | ≤98 dB(A) |
| Minimum fuel consumption rate | 198 g/kW·h | Idle speed | 750 r/min |
| Rotation (facing the flywheel) | Counter-clockwise | Net weight | 337 kg |
| Dimensions (L×W×H) | 830×690×780 (mm) | ||
Model Portfolio Table
| Series | Model | Air intake mode | Rated power kW/Ps | Speed r/minn | Fuel feeding mode | Emission level | Power classification |
| WP3N* | WP3NC115-30E220 | Turbocharged and intercooled | 85/115 | 3000 | HPCR | - | P3 |
| WP3NC130-30E220 | Turbocharged and intercooled | 95/130 | 3000 | HPCR | - | P3 | |
| WP3NC150-30E220 | Turbocharged and intercooled | 110/150 | 3000 | HPCR | - | P3 | |
| WP3NC160-30E220 | Turbocharged and intercooled | 118/160 | 3000 | HPCR | - | P3 |
