WP10 series engines for bulldozers
weichai

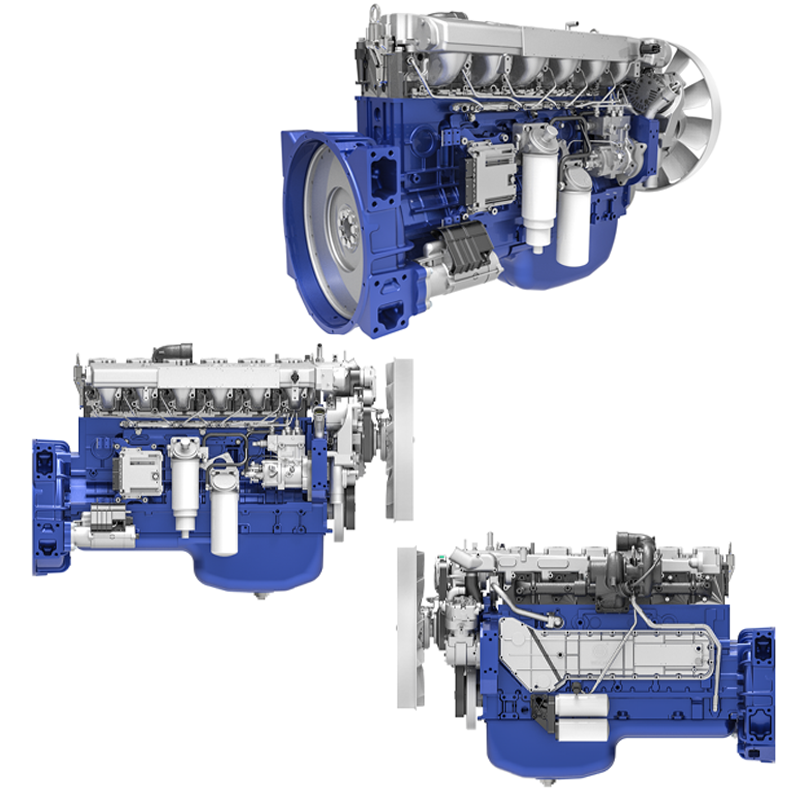

WP10 series engines for bulldozers
Overview
WP10 series engines are flagship products of Weichai for construction machinery. Displacement: 9.726L. Power range: 131-276kW. Euro Stage IIIa/II emission standards.
Power Rating | ||||||
Maximum Power | 148 kW | |||||
Minimum Power | 115 kW | |||||
Maximum Torque / Speed | （750-955）/（1000-1600） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro Stage IIIa | |||||
General | ||||||
Series | WP10 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 45384 | |||||
Bore | 126 mm | |||||
Stroke | 130 mm | |||||
Displacement | 9.726 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:01:00 | |||||
Combustion System | Electronically controlled high-pressure common-rail system/mechanical pump | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1540 mm | |||||
Width | 656 mm | |||||
Height | 1208 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 875 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
WP10G156E356 | 115/1800 | 750/1100-1200 | 9.726 | CR | 4 | 140Ps bulldozer |
WP10G178E355 | 131/1850 | 830/1000-1200 | 9.726 | CR | 4 | 160Ps bulldozer |
WP10G178E356 | 129/1800 | 890/1000-1200 | 9.726 | CR | 4 | 160Ps bulldozer |
WP10G181E355 | 133/1850 | 830/1000-1200 | 9.726 | CR | 4 | 165Ps bulldozer |
WP10G190E314 | 140/1900 | 955/1300-1500 | 9.726 | CR | 4 | 170Ps bulldozer |
WP10G190E354 | 140/1900 | 900/1300-1500 | 9.726 | CR | 4 | 170Ps bulldozer |
WP10G200E355 | 148/1850 | 920/1100-1200 | 9.726 | CR | 4 | 180Ps bulldozer |
WD10G156E26 | 115/1800 | 750/1100-1200 | 9.726 | Mechanical Pump | 2 | 140Ps bulldozer |
WD10G178E25 | 131/1850 | 830/1000-1200 | 9.726 | Mechanical Pump | 2 | 160Ps bulldozer |
WD10G190E213 | 140/1900 | 900/1400-1600 | 9.726 | Mechanical Pump | 2 | 170Ps bulldozer |
WD10G200E25 | 148/1850 | 920/1100-1200 | 9.726 | Mechanical Pump | 2 | 180Ps bulldozer |
