WP10 series engines are flagship products of Weichai for construction machinery. Displacement: 9.7L. Power range: 228-276kW. Euro V/ Euro Stage IIIa emission standard. Application: 36-75t autocranes.
Preloader Close
ได้รับการแต่งตั้งอย่างเป็นทางการแต่เพียงผู้เดียวในประเทศไทย

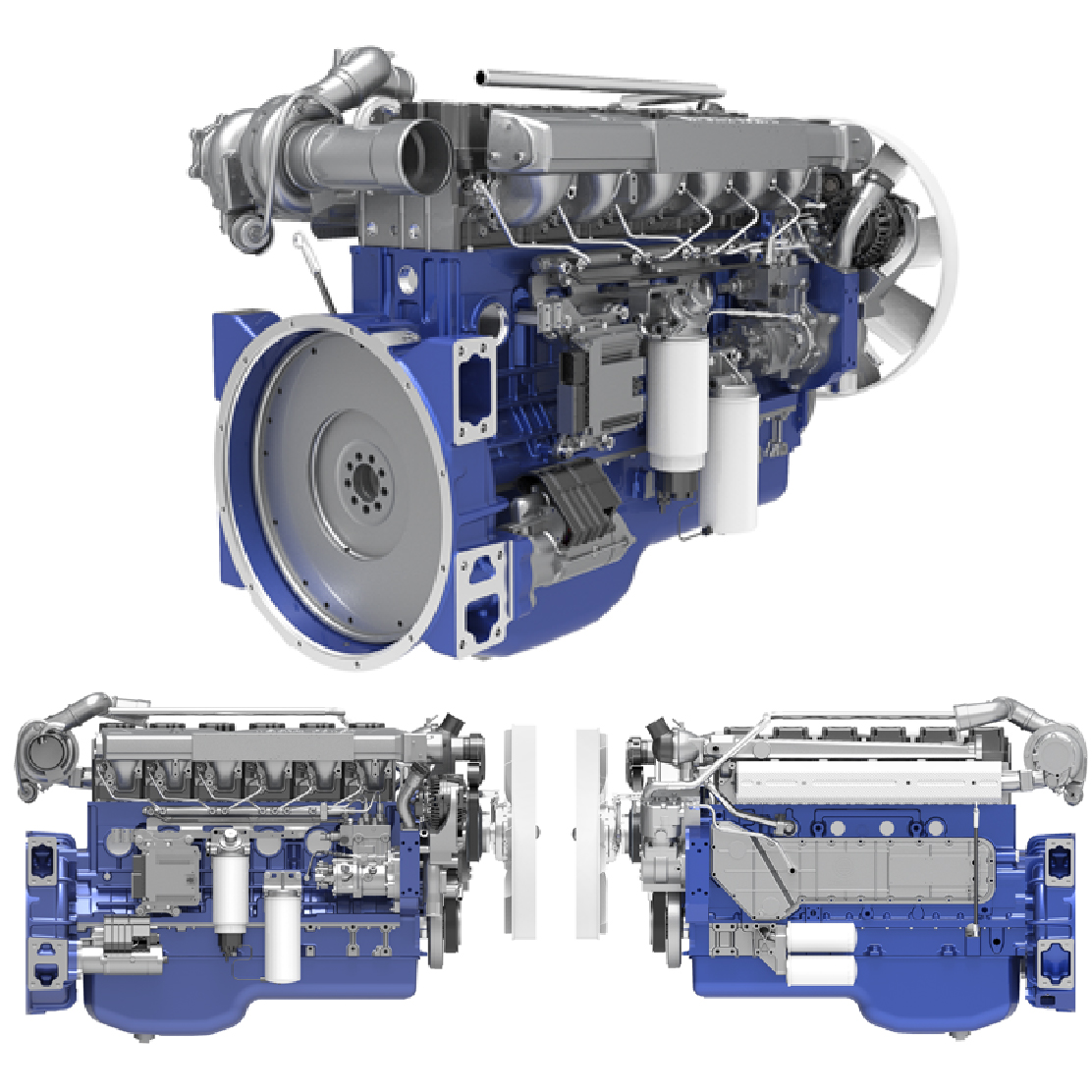

WP10 series engines for cranes
weichai
WP10 series engines for cranes
Overview
Power Rating | ||||||
Maximum Power | 276 kW | |||||
Minimum Power | 228 kW | |||||
Maximum Torque / Speed | 1650/（1200-1600） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro V/ Euro Stage IIIa | |||||
General | ||||||
Series | WP10 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 126 mm | |||||
Stroke | 130 mm | |||||
Displacement | 9.7 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:1 | |||||
Combustion System | Electronically controlled high-pressure common-rail | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1525 mm | |||||
Width | 730 mm | |||||
Height | 1063 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 875 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
|---|---|---|---|---|---|---|
WP10.310E53 | 228/1900 | 1500/1200-1500 | 9.7 | CR+SCR | 4 | 36t truck crane |
WP10.336E53 | 247/1900 | 1550/1200-1500 | 9.7 | CR+SCR | 4 | 55t truck crane |
WP10.375E53 | 276/1900 | 1650/1200-1600 | 9.7 | CR+SCR | 4 | 75t truck crane |
WP10G336E344 | 247/1900 | 1550/1100-1400 | 9.7 | CR | 4 | 150-300t crawler crane |
