WP10H series diesel engines are new generation of engine model within engine platform of Weichai, integrating the latest technological achievements. Euro V/IV emission standards. Application: 75t autocranes.
Preloader Close
ได้รับการแต่งตั้งอย่างเป็นทางการแต่เพียงผู้เดียวในประเทศไทย

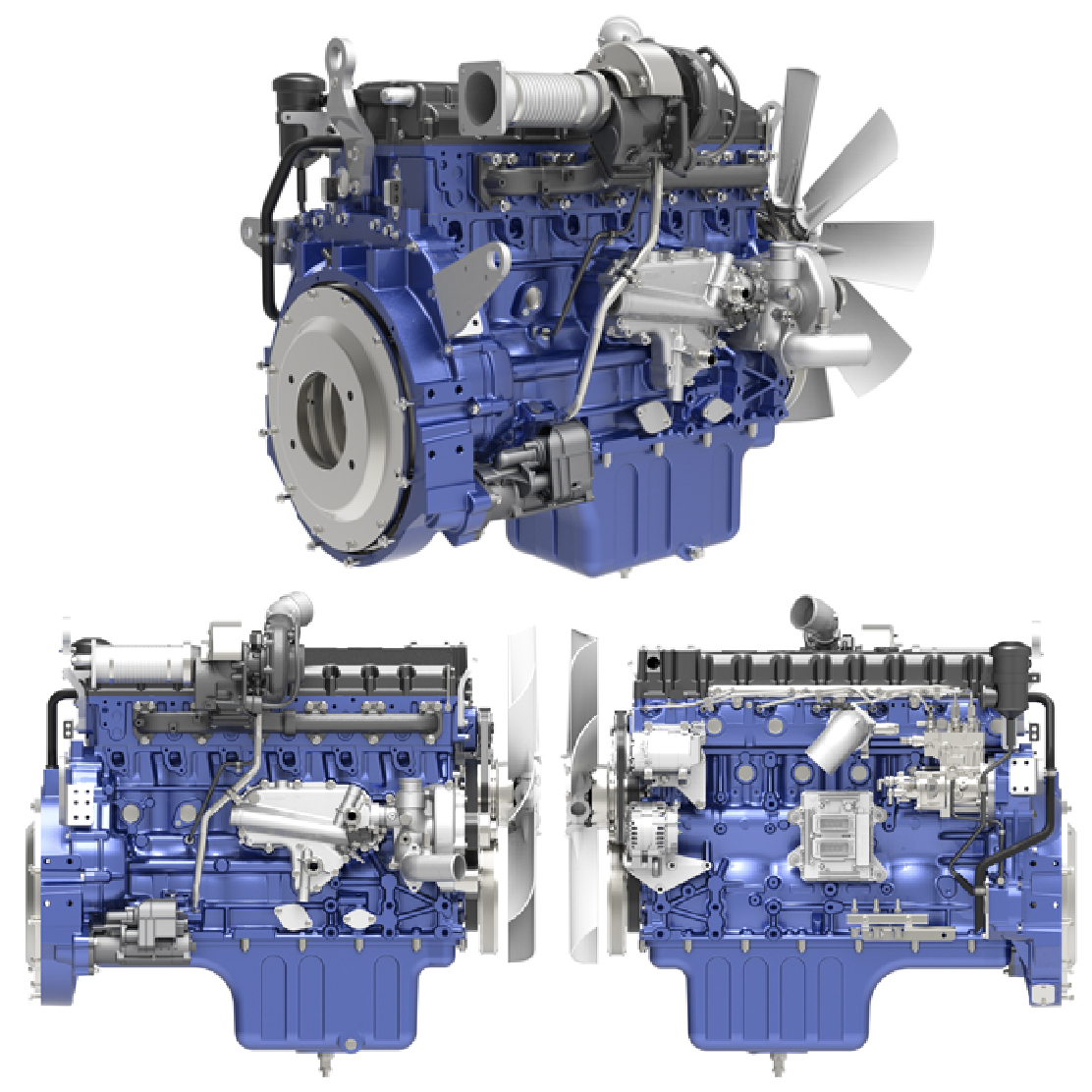

WP10H series engines for cranes
weichai
WP10H series engines for cranes
Overview
Power Rating | ||||||
Maximum Power | 276 kW | |||||
Minimum Power | 276 kW | |||||
Maximum Torque / Speed | 1800/（1000-1400) N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro V/IV | |||||
General | ||||||
Series | WP10H | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 116 mm | |||||
Stroke | 150 mm | |||||
Displacement | 9.5 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17.5:1 | |||||
Combustion System | Electronically controlled high-pressure common-rail | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1196 mm | |||||
Width | 1026 mm | |||||
Height | 1133 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 805 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
|---|---|---|---|---|---|---|
WP10H375E50 | 246/1900 | 1800/1000-1400 | 9.5 | CR+SCR | 4 | 70t truck crane |
WP10H375E62 | 246/1900 | 1800/1000-1400 | 9.5 | DOC+DPF+Hi-SCR | 4 | 70t truck crane |
