WP12 series engines for bulldozers
weichai

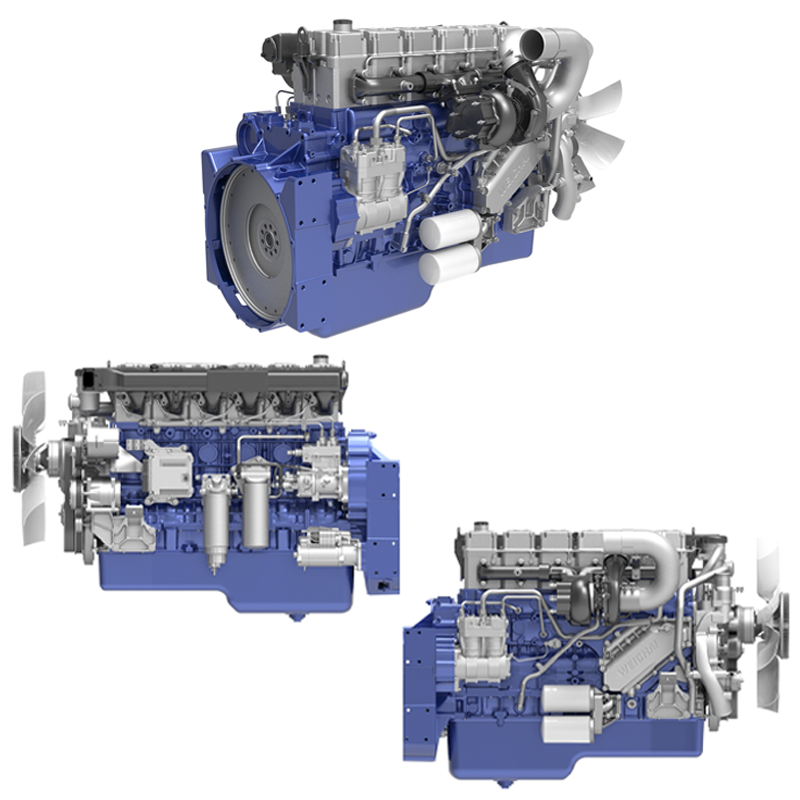

WP12 series engines for bulldozers
Overview
Weichai WP12 series engines for construction machinery. Power range: 183-195kW. Euro Stage IIIa emission standards.
Power Rating | ||||||
Maximum Power | 195 kW | |||||
Minimum Power | 182 kW | |||||
Maximum Torque / Speed | （1260-1400）/（1000-1400） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro Stage IIIa | |||||
General | ||||||
Series | WP12 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 126 mm | |||||
Stroke | 155 mm | |||||
Displacement | 11.596 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:01:00 | |||||
Combustion System | Electronically controlled high-pressure common-rail system/mechanical pump | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1508 mm | |||||
Width | 890 mm | |||||
Height | 1225 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 1000 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
WP12G250E305 | 183/1800 | 1260/1000-1300 | 11.6 | CR | 4 | Bulldozer |
WP12G265E304A | 195/1900 | 1325/1200-1400 | 11.6 | CR | 4 | Bulldozer |
