Weichai WP12 series engines for construction machinery. Power range: 276-338kW. Euro V emission standard. Application: 80-130t autocranes and other industries.
Preloader Close
ได้รับการแต่งตั้งอย่างเป็นทางการแต่เพียงผู้เดียวในประเทศไทย

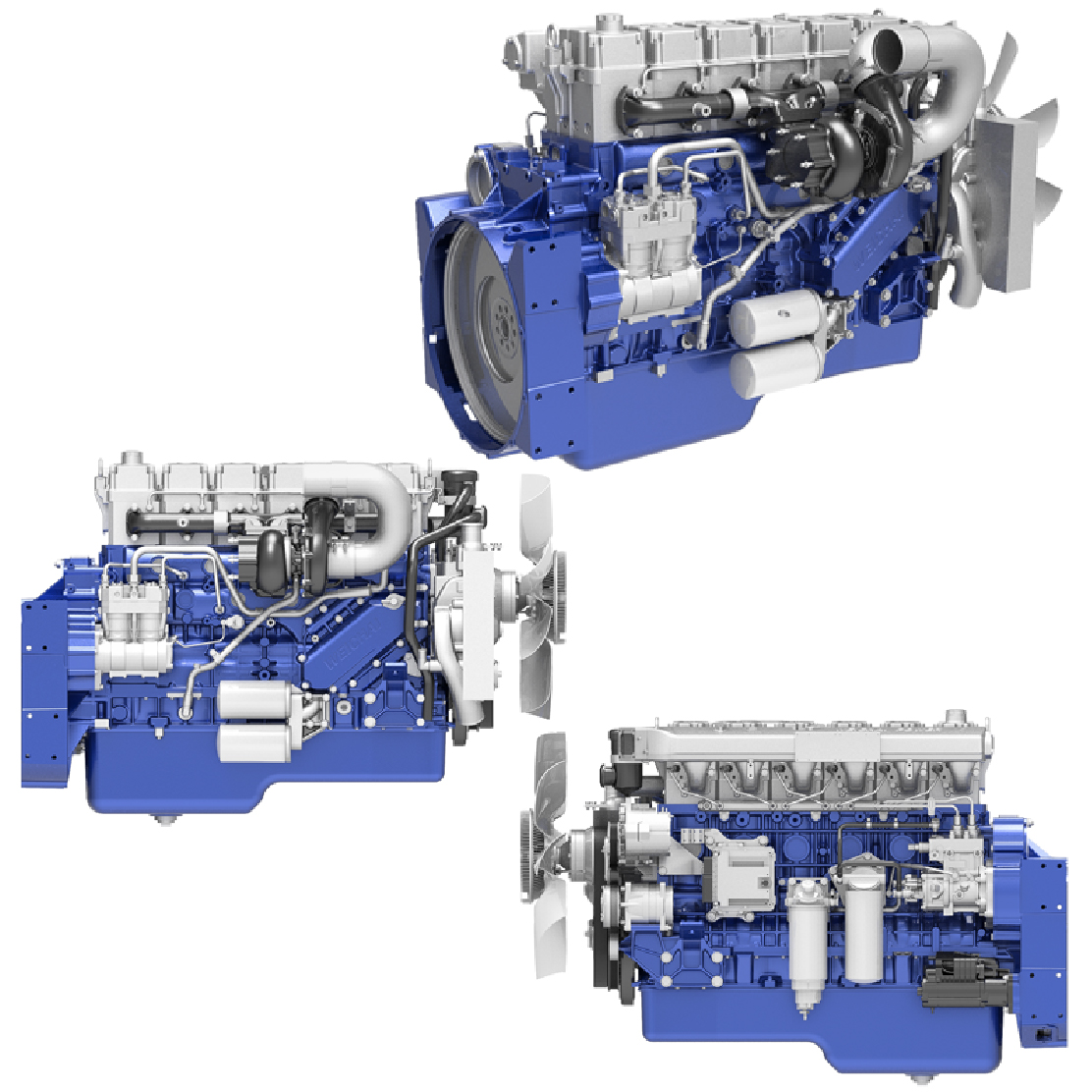

WP12 series engines for cranes
weichai
WP12 series engines for cranes
Overview
Power Rating | ||||||
Maximum Power | 338 kW | |||||
Minimum Power | 276 kW | |||||
Maximum Torque / Speed | (1800-2110)/（1000-1400 ） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro V/Ⅵ | |||||
General | ||||||
Series | WP12 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 126 mm | |||||
Stroke | 155 mm | |||||
Displacement | 11.596 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:1 | |||||
Combustion System | Electronically controlled high-pressure common-rail | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1611 mm | |||||
Width | 817 mm | |||||
Height | 1094 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 1000 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
|---|---|---|---|---|---|---|
WP12.375E50 | 276/1900 | 1800/1000-1400 | 11.596 | CR+SCR | 4 | 80t truck crane |
WP12.430E50 | 316/1900 | 2060/1000-1400 | 11.596 | CR+SCR | 4 | 90-100t truck crane |
WP12.460E50 | 338/1900 | 2110/1000-1400 | 11.596 | CR+SCR | 4 | 110-130t truck crane |
WP12.460E62 | 338/1900 | 2200/1000-1400 | 11.596 | CR+DOC+DPF+Hi-SCR | 4 | 100-130t truck crane |
WP12G460E300 | 338/1900 | 2110/1000-1400 | 11.596 | CR+SCR | 4 | 400t crawler crane |
