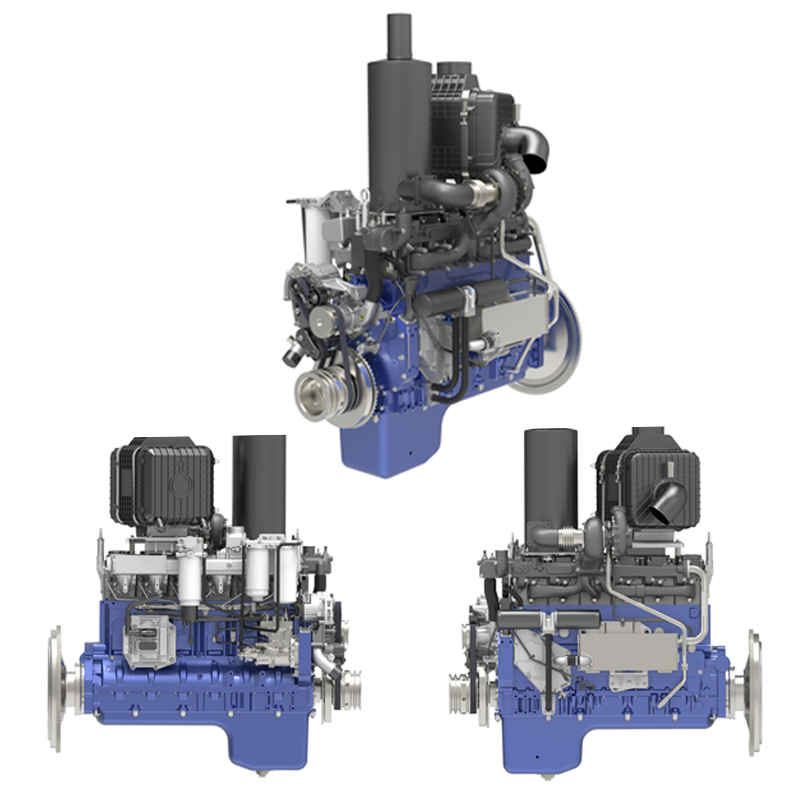

WP12 series engines for loaders
Overview
WP10 series engines are flagship products of Weichai. Displacement: 9.726L. Electrically controlled high-pressure common-rail and turbocharged/turbocharged and intercooled technology. Power range: 154-210kW. Maximum torque: 1,400N.m. Rated speed range: 1,800-2,200 rpm. Euro Stage IIIa emission standards. Application: loaders, forklifts, cranes, and rollers, with a market share of more than 80% in the loader industry. WP10 series engines feature the advantages of high reliability, high power performance, excellent economy, low vibration intensity and low noise level
Power Rating | ||||||
Maximum Power | 210 kW | |||||
Minimum Power | 54 kW | |||||
Maximum Torque / Speed | 1400/(1400-1600) N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro Stage IIIa | |||||
General | ||||||
Series | WP10 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 126 mm | |||||
Stroke | 130 mm | |||||
Displacement | 9.7 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:01 | |||||
Combustion System | Electronically controlled high-pressure common-rail system/mechanical pump | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1527 mm | |||||
Width | 870 mm | |||||
Height | 1870 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 875 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
ModelSpeed | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable |
WP10G210E342 | 154/2100 | 950/1200-1400 | 9.7 | CR | 4 | 5T loader |
WP10G210E343 | 154/2000 | 980/1300-1500 | 9.7 | CR | 4 | 5T loader |
WP10G210E344 | 154/1900 | 980/1300-1500 | 9.7 | CR | 4 | 5T loader |
WP10G220E341 | 162/2200 | 950/1400-1600 | 9.7 | CR | 4 | 5T loader |
WP10G220E342 | 162/2100 | 950/1200-1400 | 9.7 | CR | 4 | 5T loader |
WP10G220E343 | 162/2000 | 980/1300-1500 | 9.7 | CR | 4 | 5T loader |
WP10G231E343 | 170/2000 | 1150/1200-1500 | 9.7 | CR | 4 | 6T loader |
WP10G240E341 | 178/2200 | 1100/1400-1600 | 9.7 | CR | 4 | 6T loader |
WP10G240E343 | 178/2000 | 1100/1300-1500 | 9.7 | CR | 4 | 6T loader |
WP10G240E342 | 178/2100 | 1100/1300-1500 | 9.7 | CR | 4 | 6T loader |
WP10G270E341 | 199/2200 | 1100/1400-1600 | 9.7 | CR | 4 | 6T loader |
WP10G286E301 | 210/2200 | 1185/1600-1800 | 9.7 | CR | 4 | 6T loader |
