Weichai WP13 series engines for construction machinery. Power range: 390-404kW. Euro V emission standard. Application: 150-260t autocranes and other industries
Preloader Close
ได้รับการแต่งตั้งอย่างเป็นทางการแต่เพียงผู้เดียวในประเทศไทย

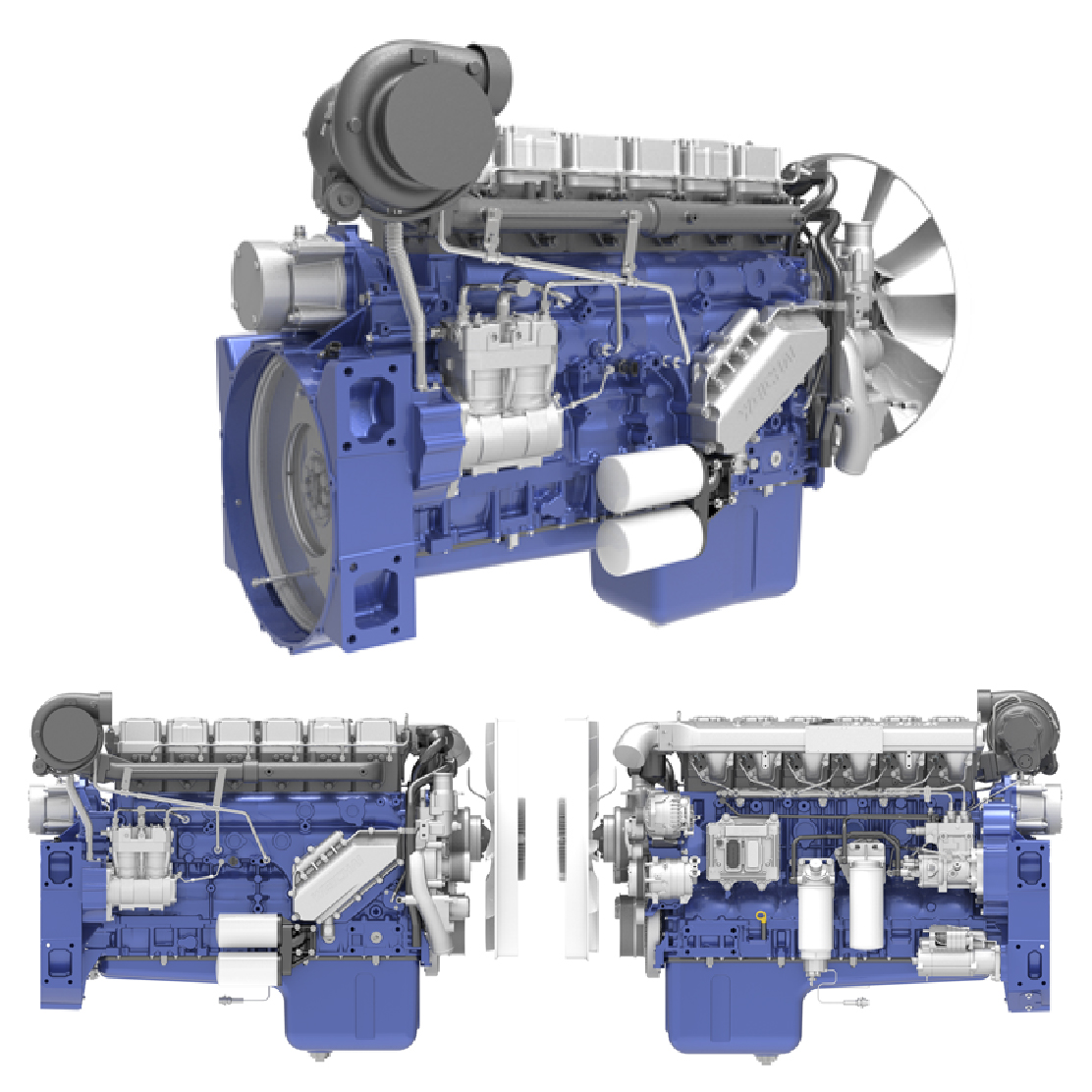

WP13 series engines for cranes
weichai
WP13 series engines for cranes
Overview
Power Rating | ||||||
Maximum Power | 404 kW | |||||
Minimum Power | 390 kW | |||||
Maximum Torque / Speed | 2500/（1000-1400) N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro V/Ⅵ | |||||
General | ||||||
Series | WP13 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 127 mm | |||||
Stroke | 165 mm | |||||
Displacement | 12.54 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17:1 | |||||
Combustion System | Electronically controlled high-pressure common-rail | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1556 mm | |||||
Width | 817 mm | |||||
Height | 1094 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 1060 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
|---|---|---|---|---|---|---|
WP13.530E501 | 390/1900 | 2500/1000-1400 | 12.54 | CR+SCR | 4 | 180-220t truck crane |
WP13.550E62 | 404/1900 | 2500/1000-1400 | 12.54 | CR+DOC+DPF+Hi-SCR | 4 | 180-220t truck cra |
