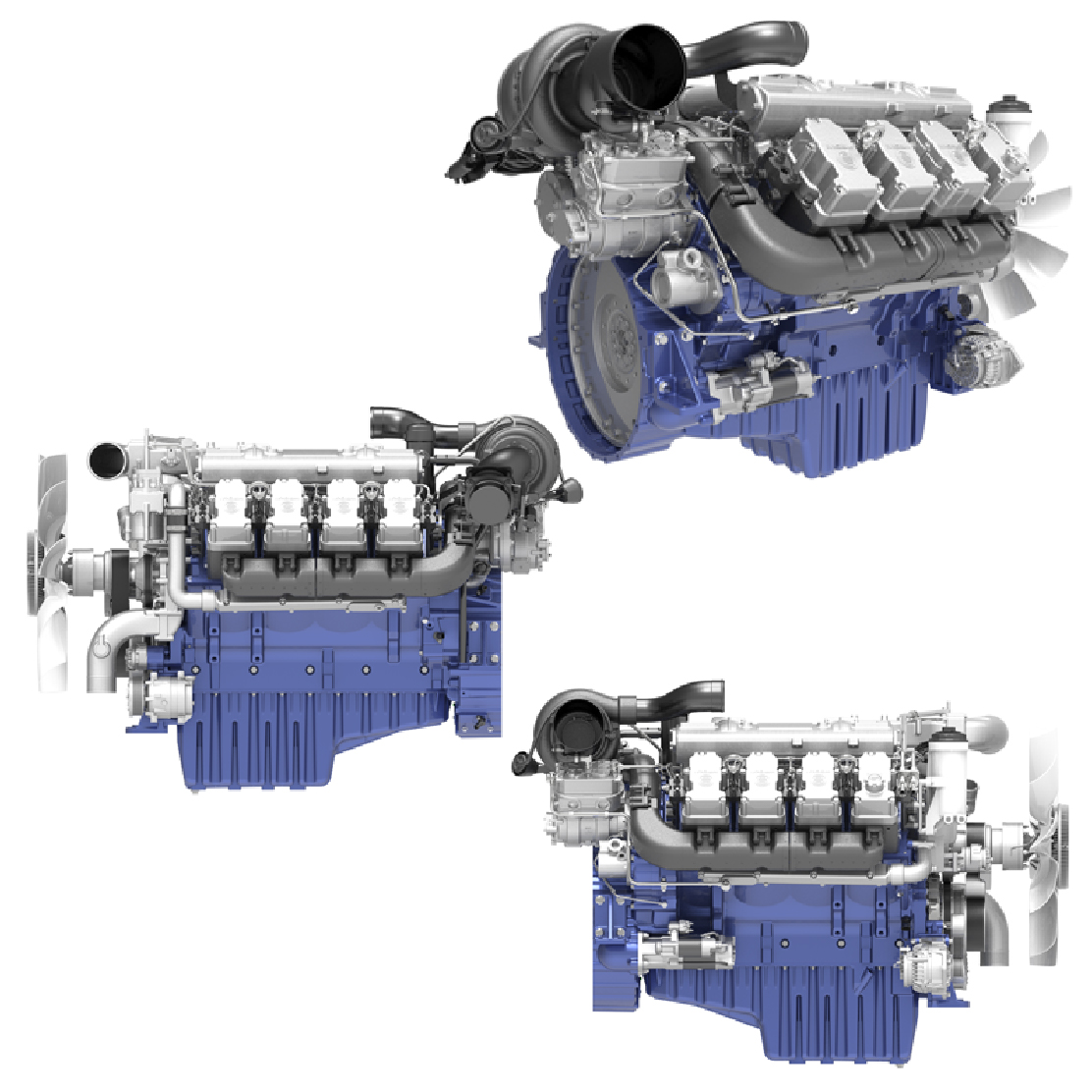

WP17 series engines for cranes

Overview

Meeting the requirements of 70t wide-body dump trucks, all-terrain autocranes 260t or more, crawler cranes 650t or more and large milling machines.

Power Rating
Maximum Power				566 kW
Minimum Power				404 kW
Maximum Torque / Speed				3000/（1200-1600） N·m / r/min
Emission Standards
Emissions				/
General
Series				WP17
Fuel				Diesel
Type				V-type 8-cylinder, four-stroke engine
Cylinder Number				8
Valve Number				4
Bore				127 mm
Stroke				165 mm
Displacement				16.72 L
Aspiration				Turbocharged and intercooled
Compression Ratio				17:1
Combustion System				Electronically controlled high-pressure common-rail
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Length				1590 mm
Width				1158 mm
Height				1215 mm
Weight - Net Dry (Basic Operating Engine Without Optional Attachments)				1450 kg
Remarks: Product parameters and pictures are for reference only; subject to change without notice.

Model	Rated Power/ Speed （kW/rpm）	Maximum Torque / Speed （N·m/rpm）	Displacement （L）	Technique Route	Valve Number	Adaptable Vehicle
WP17G770E302	566/2100	3000/1200-1500	16.72	CR	4	≥650t crawler crane
