WP3.2 series engines for excavators
weichai
WP3.2 series engines for excavators
Overview

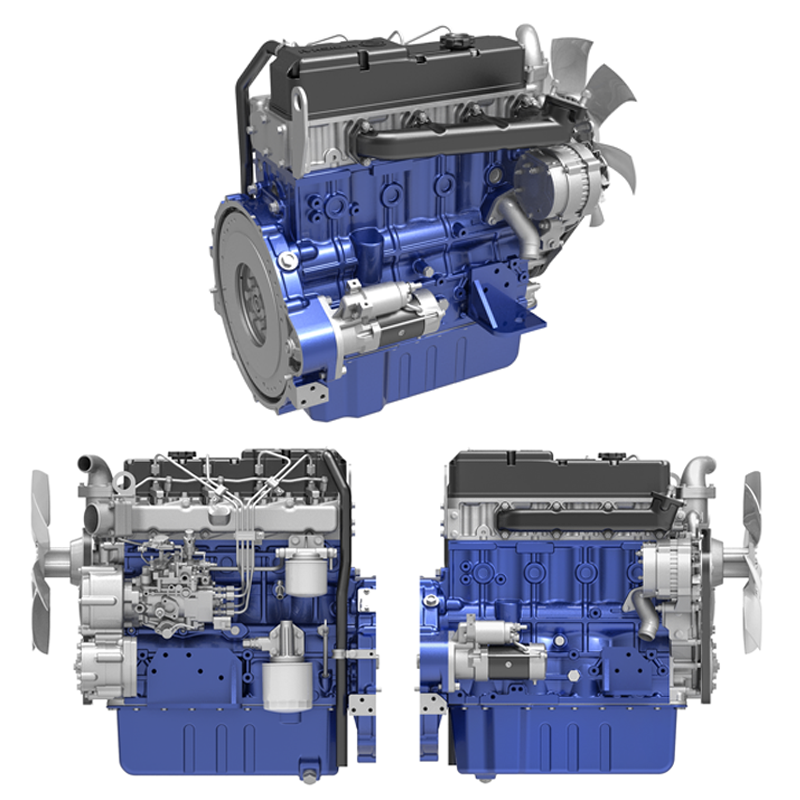

WP3.2 series engines are 3.2L displacement self-priming engines independently developed by Weichai. Technology roadmap: Electronically controlled high-pressure common-rail and electronically controlled VE pump. Power range: 36.8-45kW. Euro Stage IIIa emission standard. Application: forklifts, skid-steer loaders, small loaders, aerial platforms and other industries.
Power Rating | ||||||
Maximum Power | 36.8 kW | |||||
Minimum Power | 36.8 kW | |||||
Maximum Torque / Speed | 200/（1400-1700） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro Stage IIIa | |||||
General | ||||||
Series | WP3.2 | |||||
Fuel | Diesel | |||||
Type | Inline 4-cylinder, four-stroke engine | |||||
Cylinder Number | 4 | |||||
Valve Number | 2 | |||||
Bore | 98 mm | |||||
Stroke | 105 mm | |||||
Displacement | 3.17 L | |||||
Aspiration | Self-priming | |||||
Compression Ratio | 18:01:00 | |||||
Combustion System | Electronically controlled high-pressure common-rail system/electronically controlled VE pump | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 735 mm | |||||
Width | 545 mm | |||||
Height | 686 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 270 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
WP3.2G50E311 | 36.8/2200 | 200/1400-1700 | 3.2 | CR | 2 | 5-6t excavator |
