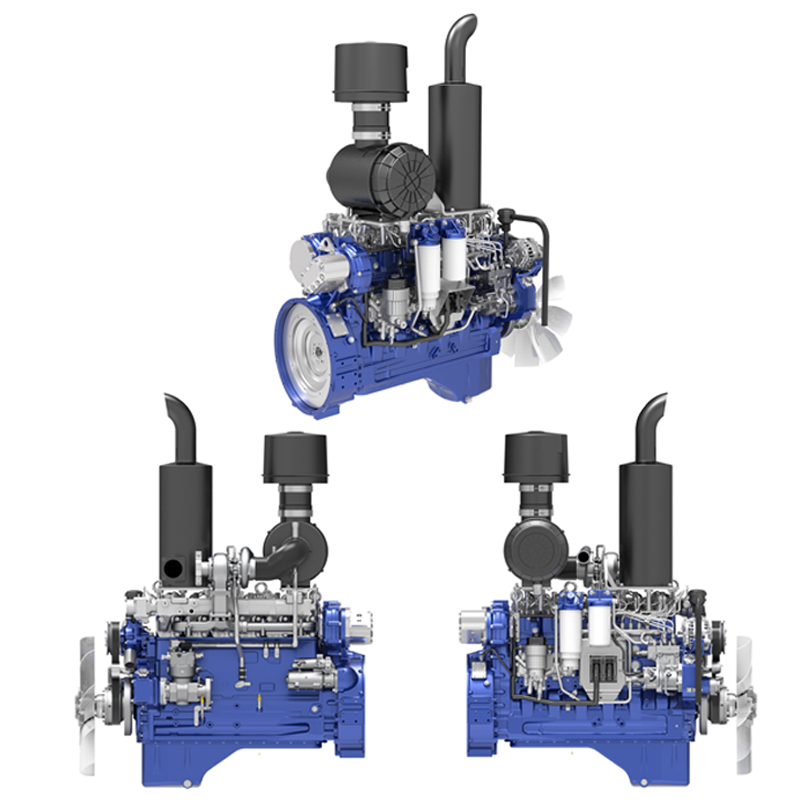

WP6 series engines for bulldozers
weichai
WP6 series engines for bulldozers
Overview
Weichai WP6 series engines for construction machinery. Power range: 86-102kW. Euro Stage IIIa/II emission standards
Power Rating | ||||||
Maximum Power | 105 kW | |||||
Minimum Power | 86 kW | |||||
Maximum Torque / Speed | (460-720)/（1200-1600） N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro Stage IIIa | |||||
General | ||||||
Series | WP6 | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 2 | |||||
Bore | 105 mm | |||||
Stroke | 130 mm | |||||
Displacement | 6.75 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 18:01:00 | |||||
Combustion System | Electronically controlled high-pressure common-rail system/mechanical pump | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1276 mm | |||||
Width | 805 mm | |||||
Height | 1075 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 625 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
WP6G110E330 | 82/2200 | 470/1400-1600 | 6.75 | CR | 2 | Bulldozer |
WP6G115E330 | 86/2350 | 460/1400-1600 | 6.75 | CR | 2 | Bulldozer |
WP6G125E332 | 92/2200 | 540/1400-1600 | 6.75 | CR | 2 | Bulldozer |
WP6G143E330 | 105/1900 | 720/1200-1300 | 6.75 | Mechanical pump | 2 | Bulldozer |
WP6G115E235 | 86/2350 | 460/1400-1600 | 6.75 | Mechanical Pump | 2 | Bulldozer |
WP6G140E203 | 105/1900 | 700/1200-1300 | 6.75 | Mechanical Pump | 2 | Bulldozer |
