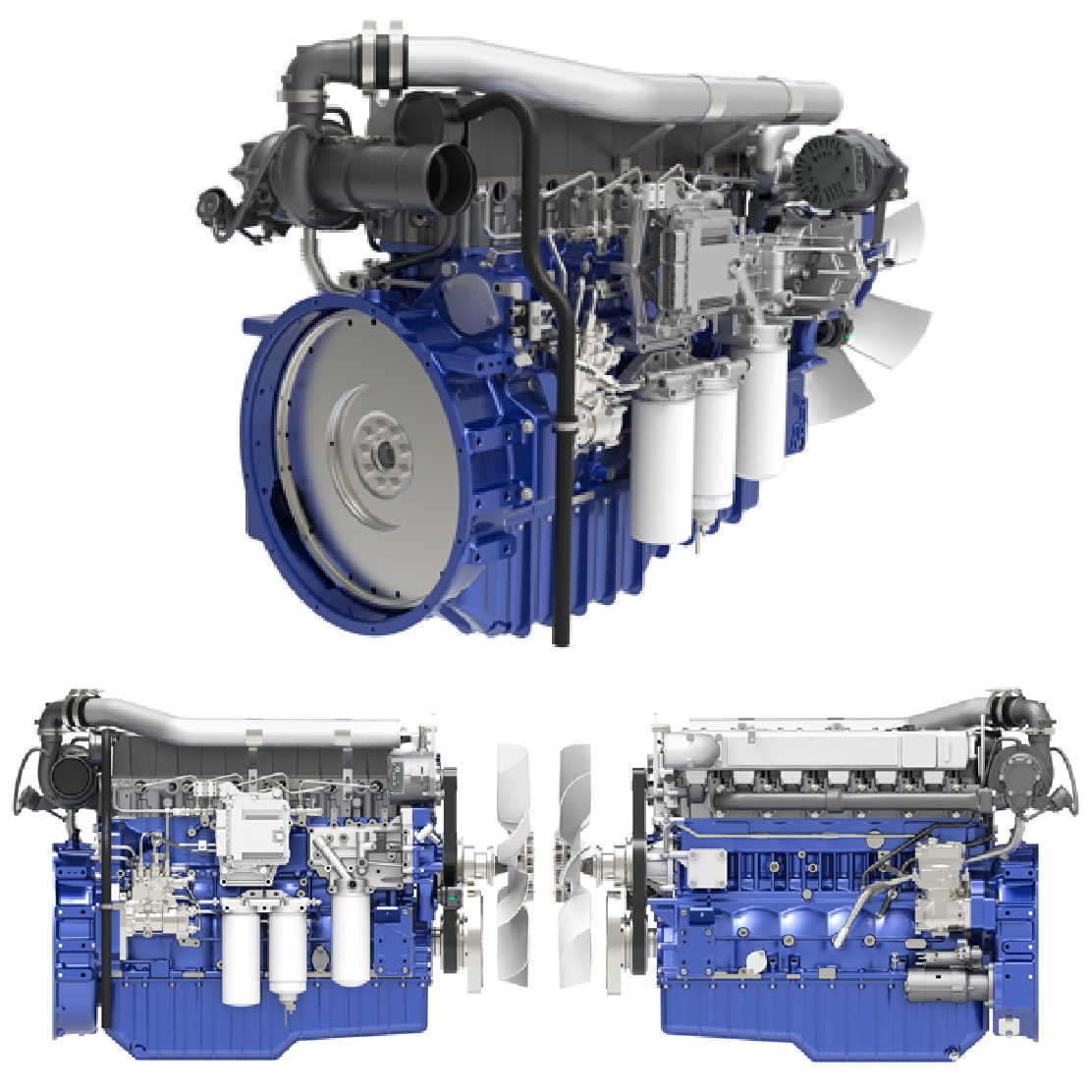

WP6 series engines for cranes

Weichai WP6 series engines for cranes. Power range: 162-180kW. Euro V emission standard. Application: 12-16t autocranes.

Power Rating
Maximum Power				180 kW
Minimum Power				162 kW
Maximum Torque / Speed				(850-900)/（1200-1600) N·m / r/min
Emission Standards
Emissions				Euro V
General
Series				WP6
Fuel				Diesel
Type				Inline 6-cylinder, four-stroke engine
Cylinder Number				6
Valve Number				2
Bore				105 mm
Stroke				130 mm
Displacement				6.75 L
Aspiration				Turbocharged and intercooled
Compression Ratio				18:1
Combustion System				Electronically controlled high-pressure common-rail
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Length				1256 mm
Width				572 mm
Height				970 mm
Weight - Net Dry (Basic Operating Engine Without Optional Attachments)				620 kg
Remarks: Product parameters and pictures are for reference only; subject to change without notice.

Model	Rated Power/ Speed （kW/rpm）	Maximum Torque / Speed （N·m/rpm）	Displacement （L）	Technique Route	Valve Number	Adaptable Vehicle
WP6.220E50	162/2300	850/1200-1600	6.75	CR+SCR	2	12-16 TCrane
WP6.245E50	180/2300	900/1200-1600	6.75	CR+SCR	2	16-20T crane
