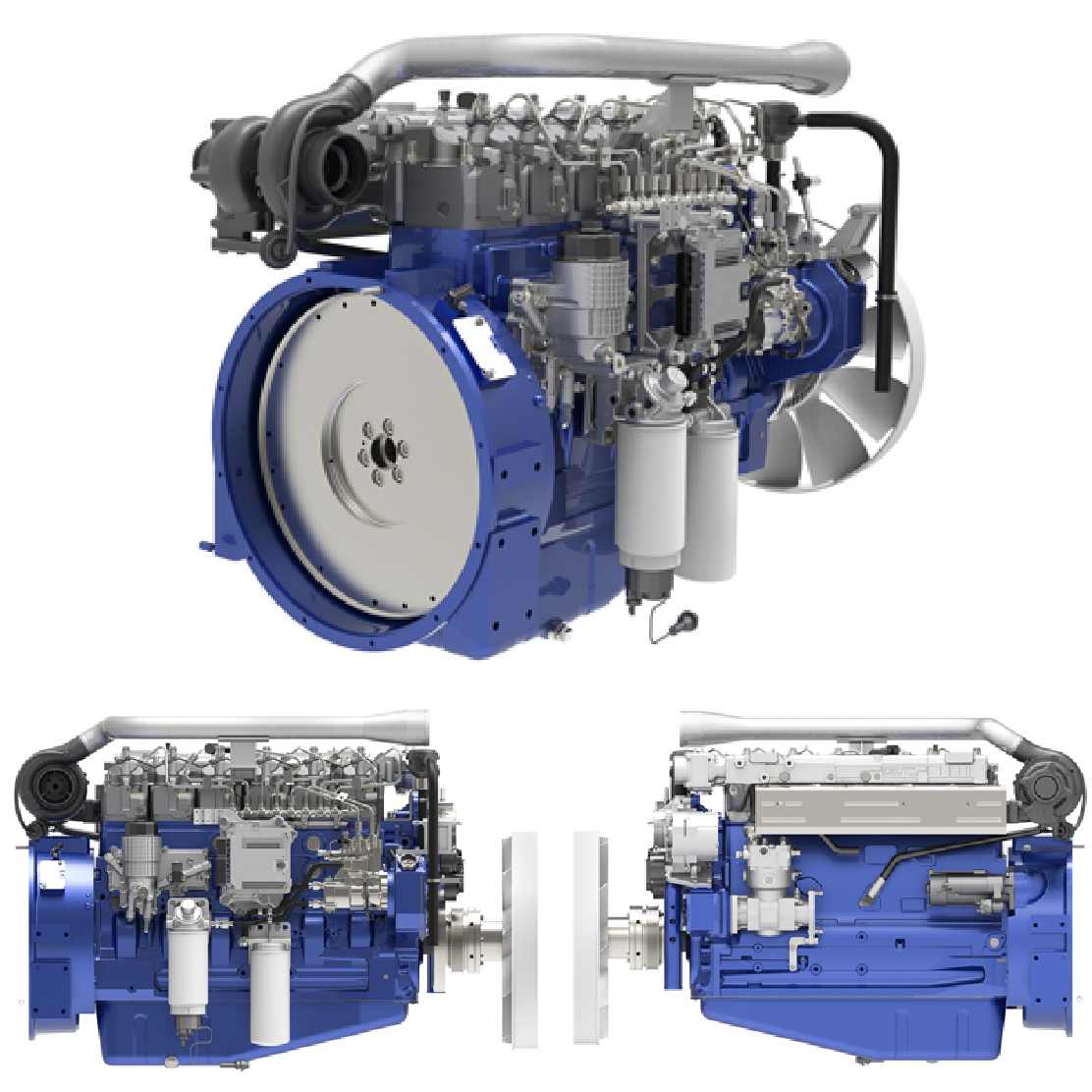

WP7 series engines for cranes

Overview

Weichai WP7 series engines for cranes. Power range: 176-220kW. Euro V emission standard. Application: 20-25t autocranes.

Power Rating
Maximum Power				220 kW
Minimum Power				176 kW
Maximum Torque / Speed				(1050-1250)/（1200-1700） N·m / r/min
Emission Standards
Emissions				Euro V
General
Series				WP7
Fuel				Diesel
Type				Inline 6-cylinder, four-stroke engine
Cylinder Number				6
Valve Number				4
Bore				108 mm
Stroke				136 mm
Displacement				7.47 L
Aspiration				Turbocharged and intercooled
Compression Ratio				18:1
Combustion System				Electronically controlled high-pressure common-rail
Engine Dimensions (Approximate. Final dimensions dependent on selected options)
Length				1367 mm
Width				817 mm
Height				1050 mm
Weight - Net Dry (Basic Operating Engine Without Optional Attachments)				700 kg
Remarks: Product parameters and pictures are for reference only; subject to change without notice.

Model	Rated Power/ Speed （kW/rpm）	Maximum Torque / Speed （N·m/rpm）	Displacement （L）	Technique Route	Valve Number	Adaptable Vehicle
WP7.240E51	176/2100	1050/1200-1700	7.47	CR+SCR	4	20t Crane
WP7.270E51	199/2100	1160/1200-1700	7.47	CR+SCR	4	25T(4 boom sections)crane
WP7.300E51	220/2100	1250/1200-1700	7.47	CR+SCR	4	25T(5 boom sections)crane
