WP9H series diesel engines are new generation of engine model within engine platform of Weichai, integrating the latest technological achievements. Euro V/IV emission standards. Application: 25-55t autocranes.
Preloader Close
ได้รับการแต่งตั้งอย่างเป็นทางการแต่เพียงผู้เดียวในประเทศไทย

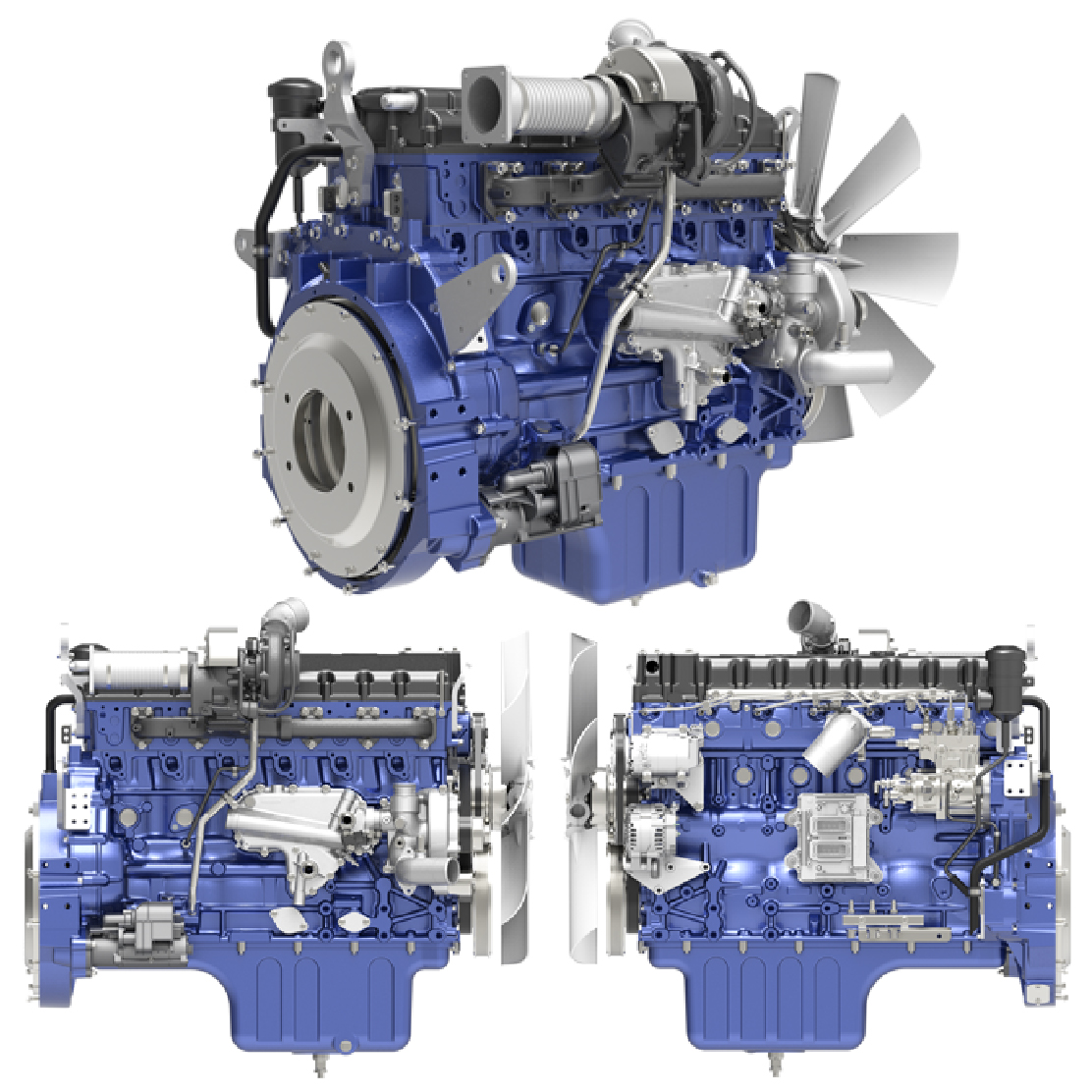

WP9H series engines for cranes
weichai
WP9H series engines for cranes
Oveview
Power Rating | ||||||
Maximum Power | 247 kW | |||||
Minimum Power | 228 kW | |||||
Maximum Torque / Speed | 1700（1000-1400) N·m / r/min | |||||
Emission Standards | ||||||
Emissions | Euro V/IV | |||||
General | ||||||
Series | WP9H | |||||
Fuel | Diesel | |||||
Type | Inline 6-cylinder, four-stroke engine | |||||
Cylinder Number | 6 | |||||
Valve Number | 4 | |||||
Bore | 116 mm | |||||
Stroke | 139 mm | |||||
Displacement | 8.8 L | |||||
Aspiration | Turbocharged and intercooled | |||||
Compression Ratio | 17.5:1 | |||||
Combustion System | Electronically controlled high-pressure common-rail | |||||
Engine Dimensions (Approximate. Final dimensions dependent on selected options) | ||||||
Length | 1196 mm | |||||
Width | 1026 mm | |||||
Height | 1133 mm | |||||
Weight - Net Dry (Basic Operating Engine Without Optional Attachments) | 805 kg | |||||
Remarks: Product parameters and pictures are for reference only; subject to change without notice. | ||||||
Model | Rated Power/ Speed （kW/rpm） | Maximum Torque / Speed （N·m/rpm） | Displacement （L） | Technique Route | Valve Number | Adaptable Vehicle |
|---|---|---|---|---|---|---|
WP9H350E62 | 247/1900 | 1700/1000-1400 | 8.8 | OC+DPF+Hi-SCR | 4 | 50t truck crane |
WP9H336E62 | 247/1900 | 1600/1000-1400 | 8.8 | OC+DPF+Hi-SCR | 4 | 25/35t truck crane |
WP9H310E50 | 228/1900 | 1500/1000-1400 | 8.8 | CR+SCR | 4 | 25/35t truck crane |
WP9H336E50 | 247/1900 | 1600/1000-1400 | 8.8 | CR+SCR | 4 | 55t truck crane |
